Tracking_Apollonius.jl Documentation

AbstractTrackHits

Supertype for CDC hits events which can be used by Apollonius. getdrifts(hits::AbstractTrackHits), numberofhits(hits::AbstractTrackHits) and wireproporties functions has to be implemented for all child types of it.

Accumulator{T, I} <: AbstractAccumulator where {T<:AbstractFloat, I<:Signed}(
grid::ApolloniusGrid{T}
votes::Vector{I}
pivot::Vector{T}
λpositif::Bool
hitsfound::Vector{Bool}
vcellsfoundperhit::Vector{Vector{Int8}})

The accumulator to store results of Apollonius functions.

• grid: a vector of IntervalBox used as input of the Apollonius functions.
• votes: a vote is equal to one when the return of Apollonius functions is not equal to 0. the sum for all hits is stored for each IntervalBox.
• pivot: a parameter used by Apollonius functions
• λpositif is true when lambda=1, false for lambda=-1. lambda is used as input of Apollonius functions
• hitsfound: each element corresponds to a hit. its value is false if no vote found for this given hit
• vcellsfoundperhit: for each hit found gives a vector of results in all IntervalBoxes

WireProperty{T} where {T<:AbstractFloat}(
    vstart::Vector{T}
    vend::Vector{T}
    tanStereoAngle::T
    phisLine::T)

Proporty of a wire used by Apollonius

• vstart: x,y,z of the wire in the projection plane define by zproj
• vend: ending x,y,z of the wire
• tanStereoAngle: tangent of the stereo angle
• phisLine: phi of the wire in the projection plane.

CDChitsICEDUST{T<:AbstractFloat} <: AbstractTrackHits(
xstarts::Vector{T}
ystarts::Vector{T}
zstarts::Vector{T}
xends::Vector{T}
yends::Vector{T}
zends::Vector{T}
drifts::Vector{T})

A hit is defied by the drift distance to a wire position. Each element of the Vectors corresponds to one hit (number of hits = vector length)

• xstarts: starting x position of the wires
• ystarts: starting y position of the wires
• zstarts: starting z position of the wires
• xends: ending x position of the wires
• yends: ending y position of the wires
• zends: ending z position of the wires
• drifts: drift distance of hit from the wires

ApolloniusEvent <: AbstractApolloniusEvent
eventnumber::Int
accumulators::Tuple{Accumulator, Accumulator}

An instance of ApolloniusEvent is the results returned by runApollonius for each iteration.

• eventnumber: the event number
• accumulators: A Tuple the first accumulator is for λpositif == true and the second one for λpositif == false

init_apollonius()

Tracking_Apollonius.parameters is used to initialize and configure Tracking_Apollonius

Return 0 if no error.

Description of keys in Tracking_Apollonius.parameters (distance is mm):

• Tracking_Apollonius_version: gives the version of Tracking_Apollonius used ( pkgversion(Tracking_Apollonius) ),
• precision: has to be Float32 (default) or Float64 to use GPU in single or double precision,
• vote_min_iter: for each iteration a value is given to define the number of minimum of votes in a cell of the accumulator.
• zProj: Position on the Z axis of the plane of projection (expert),
• intervals_init: domain of the possible values of the helix (Xc, Yc, Z0, E),

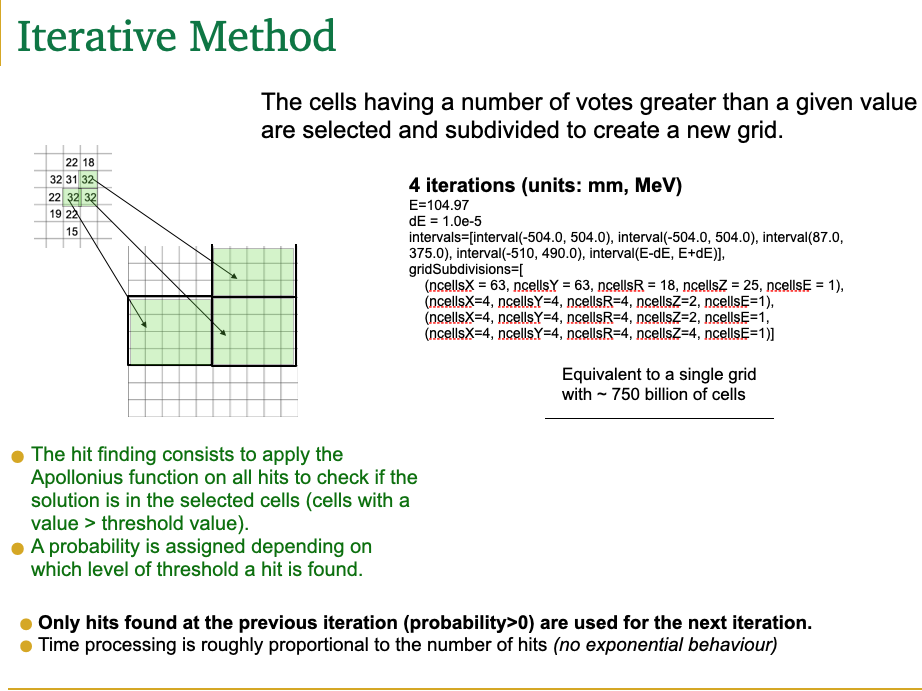

• subdivisions: for each iteration defines the number of cells (defines the cell sizes).,
• iterations: number of iterations,
• thresholds_iter: at each iteration, a set of thresholds is defined.

The highest value is used to select cells to create the grid for the next iteration. A set of hits found correspond to a threshold (each threshold is associated to a probability to be a hit of signal). A hit is found when it belongs to a cell with a number of votes > MAX(votes)-threshold,

• hasCellsPerHit_iter: at each iteration, if true for each hit the accumulator stores the cell index where a solution is found,

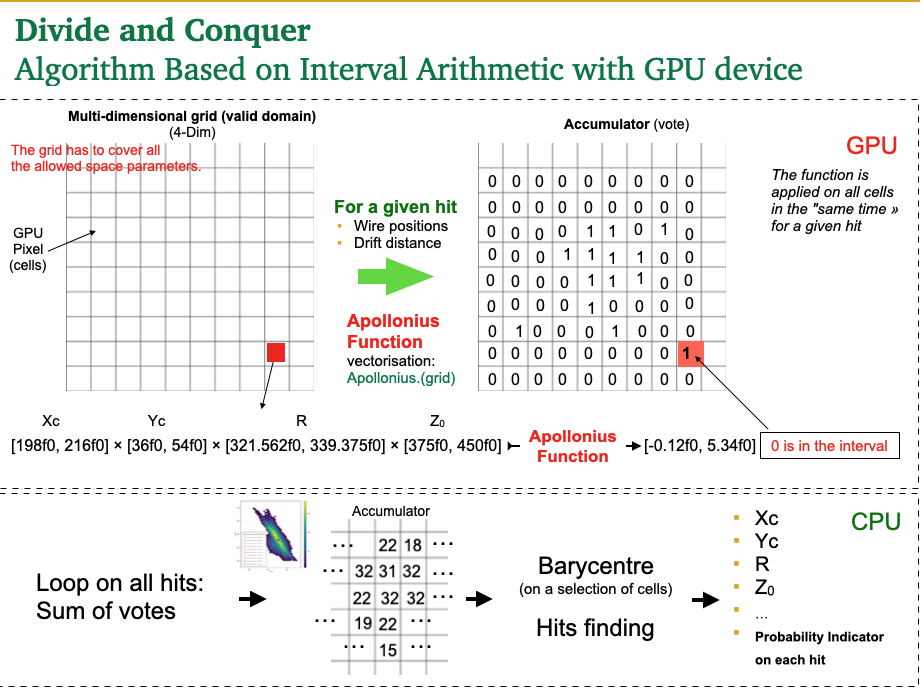

• divideandconquer: if true, divide and conqueer method is used (no other method is implemanted for this version),
• magneticField: value of the uniform magnetic field in Tesla (oriented in the Z axis),
• pivot: pivot value in the x,y plane (expert),
• threshold_results: Apollonius circle values are obtained with the cells having a number of votes > MAX(votes)-threshold_results,
• virtual_drift => to remove cells having a solution for |Xc| < virtual_drift_vec[1] and |Yc| < virtual_drift_vec[2],
• EeAMean: middle of the interval in energy (in MeV),
• deltaE: radius of the interval in energy (in MeV),
• nturn_iter: for each iteration, maximum number of turns used by the Apollonius function,
• useValidDomain: boolean values for each iteration. If true event_ValidDomain function is used to define the grid domain of the accumulor (expert),
• n_xyR_iter: for each iteration, number of cells kept around the maximum of votes used by event_ValidDomain function (expert),

Default values:

   "Tracking_Apollonius_version" => pkgversion(Tracking_Apollonius),
    "precision" => Float32,
    "vote_min_iter" => [15,15,15,7],
    "zProj" => 0.0,
    "intervals_init" => [[-504.0, 504.0], [-504.0, 504.0], [87.0, 375.0], [-510.0, 490.0]],  #CDC coordinates (wires positions)
    "subdivisions" => [
        (ncellsX = 63, ncellsY = 63, ncellsR = 18, ncellsZ = 25, ncellsE = 1),
        (ncellsX=4, ncellsY=4, ncellsR=4, ncellsZ=2, ncellsE=1),
        (ncellsX=4, ncellsY=4, ncellsR=4, ncellsZ=2, ncellsE=1),
        (ncellsX=4, ncellsY=4, ncellsR=4, ncellsZ=4, ncellsE=1)
    ],
    "iterations" => 4,
    "thresholds_iter" => [15,20,20,10],
    "hasCellsPerHit_iter" => [false, false, true, true],
    "divideandconquer" => true,
    "magneticField" => 1.0,
    "pivot" => [0.0, 0.0],
    "threshold_results" => 1,
    "virtual_drift"  => [-100. 100],
    "EeAMean" => 104.97,
    "deltaE" => 0.00001,
    "nturn_iter" => [1,2,2,2],
    "n_xyR_iter" => [4,4,4,4],
    "useValidDomain" => [false, false, false, true]

Examples

julia> Tracking_Apollonius.parameters["magneticField"]=0.98
0.98

julia> init_apollonius()
Start init_apollonius
Precision: Float32
Magnetic Field: 0.98 Tesla

zProj: 0.0
Grid Init:
[-504f0, 504f0] × [-504f0, 504f0] × [87f0, 375f0] × [-510f0, 490f0] × [104.969f0, 104.971f0]
(ncellsX = 63, ncellsY = 63, ncellsR = 18, ncellsZ = 25, ncellsE = 1)
(ncellsX = 4, ncellsY = 4, ncellsR = 4, ncellsZ = 2, ncellsE = 1)
(ncellsX = 4, ncellsY = 4, ncellsR = 4, ncellsZ = 2, ncellsE = 1)
(ncellsX = 4, ncellsY = 4, ncellsR = 4, ncellsZ = 4, ncellsE = 1)
CUDA runtime 12.6, artifact installation
CUDA driver 12.9
NVIDIA driver 575.57.8

CUDA libraries:
- CUBLAS: 12.6.4
- CURAND: 10.3.7
- CUFFT: 11.3.0
- CUSOLVER: 11.7.1
- CUSPARSE: 12.5.4
- CUPTI: 2024.3.2 (API 24.0.0)
- NVML: 12.0.0+575.57.8

Julia packages:
- CUDA: 5.5.1
- CUDA_Driver_jll: 0.10.4+0
- CUDA_Runtime_jll: 0.15.5+0

Toolchain:
- Julia: 1.10.10
- LLVM: 15.0.7

Preferences:
- CUDA_Runtime_jll.version: 12.6

1 device:
  0: Tesla V100-PCIE-32GB (sm_70, 31.729 GiB / 32.000 GiB available)

cu_array length: 1786050
cu_array constraint length: 551350


Dict{String, Any}("magneticField" => 0.98, "nturn_iter" => [1, 2, 2, 2], "zProj" => 0.0f0, "EeAMean" => 104.97, "hasCellsPerHit_iter" => Bool[0, 0, 1, 1], "virtual_drift" => [-100.0 100.0], "precision" => Float32, "thresholds_iter" => [15, 20, 20, 10], "Tracking_Apollonius_version" => v"1.5.2", "vote_min_iter" => Int16[15, 15, 15, 7], "iterations" => 4, "pivot" => Float32[0.0, 0.0], "versioninfo" => "CUDA runtime 12.6, artifact installation
CUDA driver 12.9
NVIDIA driver 575.57.8

CUDA libraries:
- CUBLAS: 12.6.4
- CURAND: 10.3.7
- CUFFT: 11.3.0
- CUSOLVER: 11.7.1
- CUSPARSE: 12.5.4
- CUPTI: 2024.3.2 (API 24.0.0)
- NVML: 12.0.0+575.57.8

Julia packages:
- CUDA: 5.5.1
- CUDA_Driver_jll: 0.10.4+0
- CUDA_Runtime_jll: 0.15.5+0

Toolchain:
- Julia: 1.10.10
- LLVM: 15.0.7

Preferences:
- CUDA_Runtime_jll.version: 12.6

1 device:
  0: Tesla V100-PCIE-32GB (sm_70, 31.729 GiB / 32.000 GiB available)
", "n_xyR_iter" => [4, 4, 4, 4], "divideandconquer" => true, "deltaE" => 1.0e-5, "threshold_results" => 1, "intervals_init" => [[-504.0, 504.0], [-504.0, 504.0], [87.0, 375.0], [-510.0, 490.0]], "subdivisions" => @NamedTuple{ncellsX::Int64, ncellsY::Int64, ncellsR::Int64, ncellsZ::Int64, ncellsE::Int64}[(ncellsX = 63, ncellsY = 63, ncellsR = 18, ncellsZ = 25, ncellsE = 1), (ncellsX = 4, ncellsY = 4, ncellsR = 4, ncellsZ = 2, ncellsE = 1), (ncellsX = 4, ncellsY = 4, ncellsR = 4, ncellsZ = 2, ncellsE = 1), (ncellsX = 4, ncellsY = 4, ncellsR = 4, ncellsZ = 4, ncellsE = 1)], "useValidDomain" => Bool[0, 0, 0, 1])
End init_apollonius

0

runApollonius(hits::AbstractTrackHits, eventNumber::Int; cudatime::Bool=false)::Vector{ApolloniusEvent}

Return a Vector of ApolloniusEvent corresponding to each iteration from 1 to parameters["iterations"]

• eventNumber to identify the event
• hits are the hits of the event
• @CUDA.time is used if cudatime is true.

runApollonius(hits::AbstractTrackHits, hitsselected::Vector{Bool}, eventNumber::Int; cudatime::Bool=false)::Vector{ApolloniusEvent}

Return a Vector of ApolloniusEvent corresponding to each iteration from 1 to parameters["iterations"]

• eventNumber is to identify the event
• hits are the hits of the event
• use only a selection of hits at the first iteration given by hitsselected
• @CUDA.time is used if cudatime is true.

geteventnumber(event::ApolloniusEvent)

Return the event number stored in event

apolloniusresults(alliterations::Vector{ApolloniusEvent}; threshold::Int=parameters["threshold_results"])::Vector{Float32}
    The elements of the vector returned are described below:

• [1]: xc
• [2]: yc
• [3]: R
• [4]: Z0
• [5]: RMS xc
• [6]: RMS yc
• [7]: RMS R
• [8]: RMs Z0
• [9]: Vote Max
• [10]: Number of cells used in the accumulator accu
• [11]: Sign of Pz
• [12]: iteration
• [13]: Number of hits
• [14 to 14 + Number of hits -1] : Probability for each hit to belong to the track signal (hits found for a given threshold)
• [14 + Number of hits to end]: sign of drifts (if 0.0 the sign is undetermined)

results_turn(event_iter::Vector{<:AbstractApolloniusEvent}, iter::Int) @NamedTuple{hsp_turn::Vector{Vector{Float32}}, results_turn::Vector{Vector{Float32}}, accu_turn::Vector{Accumulator}}

As input uses the iteration iter of event_iter.

Return a NamedTuple:

• hsp_turn, a vector vector of probabilty for each hit to belong to the turn iturn equal to the index in hsp_turn
• results_turn is the return value of results for each turn
• accu_turn, a vector of accumulators for each turn

see gethits_turn_indicator

hspIndicator(event_iter::Vector{<:AbstractApolloniusEvent}, iter::Int)::Vector{Float32}

For each hit, return in a Vector the probability to be a hit produced by a signal at the iteration iter. In input all iterations are given with event_iter All cells having a value between a maxvalue and maxvalue-parameters["thresholds_iter"][iter] (excluded) are used.

hspIndicator(accu::AbstractAccumulator; threshold::Int)::Vector{Float32}

For each hit, return in a Vector the probability to be a hit produced by a signal using the accumulator accu. All cells having a value between a maxvalue and maxvalue-threshold(excluded) are used.

gethits_sign_indicator(accu::Accumulator)::Vector{Float32}

Return for accu the Vector{Float32} where each element is the probability to have a positive drift sign (>0) or a negative drift sign (<0)

gethits_turn_indicator(accu::Accumulator, iturn::Int) @NamedTuple{hits_turn_indicator::Vector{Float32}, accu_turn::Accumulator{Float32, Int16}}

Return a NamedTuple:

• hits_turn_indicator, a vector of probabilty for each hit to belong to the turn iturn
• accu_turn, the accumulator for hits having an iturn Apollonius solution.

driftSignIndicator(event::AbstractApolloniusEvent)

For each hit, return in a Vector the signed probability of the the drift sign using the λsigned accumulator

results(accu::A; threshold::Int)::Vector{AbstractFloat} where {A<:AbstractAccumulator}

return a vector of values in the referential of hits Cells of the accumulator accu with a value greater than maxvalue-threshold are used.

• [1]: xc
• [2]: yc
• [3]: R
• [4]: Z0
• [5]: RMS xc
• [6]: RMS yc
• [7]: RMS R
• [8]: RMs Z0
• [9]: Vote Max
• [10]: Number of cells used in the accumulator accu

results_λsigned(event::AbstractApolloniusEvent; threshold::Int) = results(accu_λsigned(event); threshold)

Return the results for the λ sign having the highest probability to be correct ( see function results )

results_λpositif(event::ApolloniusEvent; threshold::Int)

Return the results for the positive λ value ( see function results )

results_λnegatif(event::ApolloniusEvent; threshold::Int)

Return the results for the negative λ value ( see function results )

accu_λsigned(event::ApolloniusEvent)

Return the accumulator having the highest probabilty to have the correct λ sign

accu_λpositif(event:ApolloniusEvent)

Return the accumulator with the positive λ value of the event

accu_λnegatif(event::ApolloniusEvent)

Return the accumulator with the negative value of λ of the event

isλpositif(accu::Accumulator)

Return false if accu is λ negatif or true if accu is λ positif

gethitsfound(accu::Accumulator)

Return for accu the Vector{Bool} where each element corresponds to each hit. The value is true if the hit is found as belonging to the signal

gethitsfound(accu::Accumulator, threshold::Int)::Vector{Bool}

Return for each hit true if the hit is found in cells of the accumulator accu having a value greater maxvlue-threshold and false for the other case.

accumulatorsigned(accu1::T, accu2::T)::T where {T<:AbstractAccumulator}

Return the accumulator (accu1 or accu2) having the highest probabilty to have the correct sign of λ

getvotes(accu::Accumulator)

Return the votes of accu

getgrid(accu::Accumulator)

Return the grid of accu

numberofhits(hits::AbstractTrackHits) Return the number of hits which are in hits

wireproporties(hits::CDChitsICEDUST)::Vector{WireProperty}

for each hit in hits of type CDChitsICEDUST return a vector WireProperty

turn_rec(hsp_turn::Vector{Vector{Float32}})::Vector{Int8}

Tools to get the turn number of each hits

event_ValidDomain(event::ApolloniusEvent, iter::Int)::ApolloniusEvent

Return an ApolloniusEvent keeping cells around the maximum values in accumulators in valid domain.

get_reconstructed_center_circle(hits::AbstractTrackHits, event::AbstractApolloniusEvent; threshold::Int)::Vector{NamedTuple{(:center, :signedDrift, :d2), Tuple{Tuple{Float32, Float32}, Float32, Float32}}}

return for each hits of the event the projected center coordinates with the signed drift and the power 2 of the distance between the Apollonius circle
    and the circle of the hits (radius=drift).
